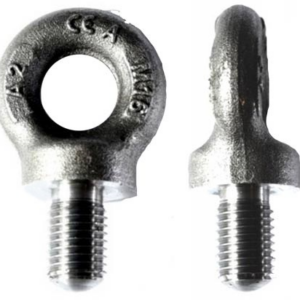

Collared Eye Bolts – Metric

£1.47 – £245.90

Metric threaded collared eye bolts available in capacities up to 20 tonnes. The threaded shack sizes range from 6mm up to 64mm. Ideal for angled lifting set ups within the stated range.

Thread/Capacity metric collared

Clear

About the Metric Collared Eye Bolt

Metric threaded collared eye bolts are probably the most commonly used in the UK with sizing measured in metric millimetres. We can also supply BSW (whitworth) threaded eye bolts with sizing in inches or UNC sizes in inches. It is important to ensure your eye bolts are used in a hole with the same thread type otherwise its security will be at risk and may come loose or even pull out under load.

Collared Eye Bolt Metric Thread Specifics

Available in a range of threaded shank lengths according to the capacity/size from 18mm to 112mm long.

Here are some additional specifics

Material – made from EN14 material or equivalent
Safety Factor – Minimum breaking load is 5 x the stated WLL
Finish – Self coloured or zinc plated
Certification – Comes with an EC declaration of conformity, basic raw material cert available on request.

You will find a comprehensive table in the specifications tab above detailing all measurements, safe working loads and weights.

Order your eyebolts and other hoist associated equipment online or give us a call if you have any questions.

Weight	N/A
Thread/Capacity metric collared	10mm/0.25 Ton, 12mm/0.4 Ton, 14mm/0.5 Ton, 16mm/0.8 Ton, 18mm/1 Ton, 20mm/1.6 Tons, 22mm/1.6 Tons, 24mm/2.5 Tons, 27mm/2.5 Tons, 30mm/4 Tons, 33mm/4 Tons, 36mm/6.3 Tons, 39mm/6.3 Tons, 42mm/8 Tons, 45mm/8 Tons, 48mm/10 tons, 52mm/12.5 Tons, 6mm/0.1 Tons, 8mm/0.15Ton, 56mm/16 Tons, 64mm/20 Tons

collared eye bolt metric thread

Safe Working Load	Diameter Thread	Diameter Base	Diameter Eye Outside	Diameter Eye Inside	Thickness Collar	Height	Thread Length	Weight Each
tonnes	a mm	b mm	c mm	e mm	f mm	g mm	h mm	kg
0.1*	6	22	33	15	7	36	18	0.06
0.15*	8	22	33	15	7	36	18	0.06
0.25*	10	22	33	15	7	36	18	0.06
0.40	12	22	33	15	7	36	18	0.06
0.50*	14	29	44	20	10	48	23	0.15
0.80	16	29	44	20	10	48	23	0.15
1.00*	18	36	52	24	12	58	28	0.27
1.60	20	40	59	27	14	65	32	0.38
1.6*	22	45	64	30	14	73	35	0.54
2.50	24	52	77	35	17	84	40	0.85
2.5*	27	58	85	39	20	94	46	1.13
4.00	30	65	96	44	22	106	51	1.62
4*	33	72	106	48	24	117	56	2.37
6.30	36	81	118	54	27	131	63	3.12
6.30*	39	86	123	57	29	137	67	3.81
8.00	42	101	148	68	34	164	79	6.27
8.00*	45	101	148	68	34	164	79	6.45
10.00	48	101	148	68	34	164	79	6.51
12.5	52	115	168	76	38	186	89	9.58
16	56	128	188	86	43	208	100	12.99
20	64	144	212	96	48	234	112	18.2
