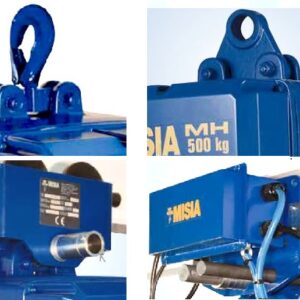

Misia MH electric chain hoist configurations

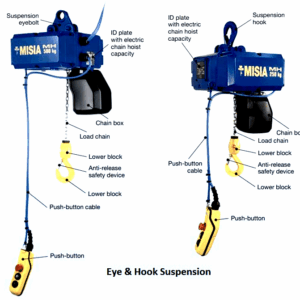

Misia MH electric chain hoist with hook or eye suspension

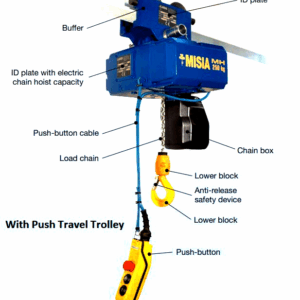

Misia MH electric chain hoist with push trolley

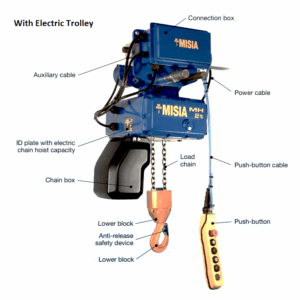

Misia MH electric chain hoist with electric power trolley

Misia Electric Chain Hoist – MH

With lifting capacities from 125kg up to 2000kg the Misia electric chain hoist is ideal for your everyday lifting tasks. Made in Italy the MH electric hoist is compact, robust and easy to operate thanks to the design and quality components.

Description
Specifications and Information Downloads

Misia Electric Chain Hoist MH Features

There are a number of key components in the MH electric hoist that ensure optimum operation. From the housing to the chain container and all the components in between you can be assured of a high quality lifting hoist.

Here we briefly look at each key part;

The housing has an aluminium die-cast casing with a shock resistant control panel covering. Electro-magnetic contactors are used in the control panel which is low voltage.
A 3 phase, asynchronous pole change motor provides the power and has a cylindrical rotor and class F insulation.
Dual speeds ranging from 1 metre per minute to 8 metres per minute (varies between models – see specifications)
When it comes to safety the brake mechanism is an important aspect. The MH hoist uses an electro-mechanical FD type disk brakes complete with a dust protection ring for safe, and quick braking.
The gearbox is another important feature on an electric hoist so the Misia MH encompasses a parallel shaft 3 stage system which incorporates helical gearing for smooth and vibration free transmission.
Overloading a hoist can be detrimental to the hoist and user so the MH incorporates a friction slip clutch for optimum protection. Re-adjustment can and should be made after 20k slip occurrences.
The pendant controller is of the push button design for optimal use and is IP65 protected.
Fatigue and wear resistant galvanised steel chain is used for the load chain and conforms to EN 818-7.
The containers for excess chain are made from robust plastic and come in 2 sizes to suit all models.

Misia MH electric Hoist Configuration Options

In order to be able to suit different lifting application set ups the Misia MH electric hoist is available in a choice of configurations. The options are predominantly associated with the suspension type.

The options are:

Eye suspension (standard option)
Swivel hook suspension
Integrated push travel trolley
Integrated Electric trolley

The full specifications and dimensions for each set up can be found in the specifications above along with the information brochure and user manual PDF downloads.

We have a number of other electric hoists to choose from including models with similar configuration options such as the Donati DMK hoist.

PDF DOWNLOADS

Misia Electric chain hoist MH Brochure

Misia MH Electric Hoist Manual

SPECIFICATIONS

Eye Suspension

SWL	Model Type 1S (eye suspension)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Power Supply	Motor		Classification	Test Load	Weight with 3m lift	Weight + extra meter
SWL	Model Type 1S (eye suspension)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Power Supply	Output	ED	Classification	Test Load	Weight with 3m lift	Weight + extra meter
t		m	m	mm	n°	m/min		kW	%	FEM	t	Kg	Kg
125	MH1SD/1S	3	2.5	5	1	8/2	380-415V 50Hz	0.09/0.36	40	2m	156	35	0.55
250	MH3LD/1S	3	2.5	5	1	5/1.25		0.09/0.36	40	3m	313	35	0.55
250	MH3SD/1S	3	2.5	5	1	8/2		0.09/0.36	40	1Am	313	35	0.55
500	MH5LD/1S	3	2.5	5	1	5/1.25		0.18/0.75	40	1Am	625	35	0.55
500	MH5SD/1S	3	2.5	5	1	8/2		0.18/0.75	40	1Am	625	35	0.5
1000	MH10LD/1S	3	2.5	5	2	4/1		0.18/0.75	40	1Am	1250	37	1.1
1000	MH10SD/1S	3	2.5	7	1	8/2		0.45/1.90	30	1Am	1250	58	1.1
2000	MH20LD/1S	3	2.5	7	2	4/1		0.45/1.90	30	1Am	2500	61	2.2

Hook Suspension

SWL	Model Type 1G (Hook suspension)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Power Supply	Motor		Classification	Test Load	Weight with 3m lift	Weight + extra meter
SWL	Model Type 1G (Hook suspension)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Power Supply	Output	ED	Classification	Test Load	Weight with 3m lift	Weight + extra meter
t		m	m	mm	n°	m/min		kW	%	FEM	Test Load	Kg	Kg
125	MH1SD/1G	3	2.5	5	1	8/2	380-415V 50Hz	0.09/0.36	40	2m	156	35	0.55
250	MH3LD/1G	3	2.5	5	1	5/1.25		0.09/0.36	40	3m	313	35	0.55
250	MH3SD/1G	3	2.5	5	1	8/2		0.09/0.36	40	1Am	313	35	0.55
500	MH5LD/1G	3	2.5	5	1	5/1.25		0.18/0.75	40	1Am	625	35	0.55
500	MH5SD/1G	3	2.5	5	1	8/2		0.18/0.75	40	1Am	625	35	0.5
1000	MH10LD/1G	3	2.5	5	2	4/1		0.18/0.75	40	1Am	1250	37	1.1
1000	MH10SD/1G	3	2.5	7	1	8/2		0.45/1.90	30	1Am	1250	58	1.1
2000	MH20LD/1G	3	2.5	7	2	4/1		0.45/1.90	30	1Am	2500	61	2.2

With Push Trolley

SWL	Model Type 2S (Push Trolley)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Motor		Classification	BEAM WIDTH		Min. radius curve	Test Load	Weight with 3m lift	Weight + extra meter	Power Supply
SWL	Model Type 2S (Push Trolley)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Output	ED	Classification	STD	OPT	Min. radius curve	Test Load	Weight with 3m lift	Weight + extra meter	Power Supply
t		m	m	mm	n°	m/min	kW	%	FEM	mm	mm	mm	t	Kg	Kg
125	MH1SD/2S	3	2.5	5	1	8/2	0.09/0.36	40	2m	62-152	153-305	800	156	41	0.55	380-415V 50Hz
250	MH3LD/2S	3	2.5	5	1	5/1,25	0.09/0.36	40	3m	62-152	153-305	800	313	41	0.55
250	MH3SD/2S	3	2.5	5	1	8/2	0.09/0.36	40	1Am	62-152	153-305	800	313	41	0.55
500	MH5SD/2S	3	2.5	5	1	5/1,25	0.18/0.75	40	1Am	62-152	153-305	800	625	41	0.55
500	MH5SD/2S	3	2.5	5	1	8/2	0.18/0.75	40	1Am	62-152	153-305	800	625	41	0.5
1000	MH10LD/2S	3	2.5	5	2	4/1	0.18/0.75	40	1Am	80-203	204-305	900	1250	48	1.1
1000	MH10SD/2S	3	2.5	7	1	8/2	0.45/1.90	30	1Am	80-203	204-305	900	1250	70	1.1
2000	MH20LD/2S	3	2.5	7	2	4/1	0.45/1.90	30	1Am	106-203	204-305	1000	2500	80	2.2

With Electric Trolley

SWL	Model Type 2S (Push Trolley)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Lifting Motor		Trolley Speed	Trolley Motor		Classification	BEAM WIDTH		Min. radius curve	Test Load	Weight with 3m lift	Weight + extra meter
SWL	Model Type 2S (Push Trolley)	Standard Lift	Standard Push Button Cord “L”	Chain Diameter x Falls		Lifting Speed	Output	ED	Trolley Speed	Output	ED	Classification	STD	OPT	Min. radius curve	Test Load	Weight with 3m lift	Weight + extra meter
t		m	m	mm	nº	m/min	kW	%	m/min	kW	%	FEM	mm	mm	mm	t	Kg	Kg
125	MH1SD/3	3	2.5	5	1	8/2	0.09/0.36	40	10-20 20/5	0.18-0.25 0.15/0.037	40	2m	55÷200	55÷305	800	156	76	0.55
250	MH3LD/3	3	2.5	5	1	5/1,25	0.09/0.36	40			40	3m	55÷200	55÷305	800	313	76	0.55
250	MH3SD/3	3	2.5	5	1	8/2	0.09/0.36	40			40	1Am	55÷200	55÷305	800	313	76	0.55
500	MH5SD/3	3	2.5	5	1	5/1,25	0.18/0.75	40			40	1Am	55÷200	55÷305	800	625	76	0.55
500	MH5SD/3	3	2.5	5	1	8/2	0.18/0.75	40			40	1Am	55÷200	55÷305	800	625	76	0.55
1000	MH10LD/3	3	2.5	5	2	4/1	0.18/0.75	40			40	1Am	55÷200	55÷305	900	1250	85	1.1
1000	MH20LD/3	3	2.5	7	1	8/2	0.45/1.9	40			40	1Am	60÷200	60÷305	900	1250	106	1.1
2000	MH20LD/3	3	2.5	7	2	4/1	0.45/1.9	40			40	1Am	60÷200	60÷305	1000	2500	116	2.2

DIMENSIONS

Eye Suspension Hoist Dimensions

SWL	Model	Minimum Headroom C	Dimensions (mm)
t	eye suspension 1S	mm	a	b	c	d	e	f	g	h	h1*	s	t	øp
125	MH1SD/1S	420	148	140	72	404	235	169	25	80	455	25	35	30.5
250	MH3LD/1S	420	148	140	72	404	235	169	25	80	455	25	35	30.5
250	MH3SD/1S	420	148	140	72	404	235	169	25	80	455	25	35	30.5
500	MH5LD/1S	420	148	140	72	404	235	169	25	80	455	25	35	30.5
500	MH5SD/1S	420	148	140	72	404	235	169	25	80	455	25	35	30.5
1000	MH10LD/1S	456	148	140	72	404	235	169	25	80	455	25	35	30.5
1000	MH10SD/1S	454	174	144	116	452	266	186	25	92	545	30	36.5	36.5
2000	MH20LD/1S	541	174	144	116	452	266	186	34	92	545	30	36.5	36.5
* Short type container (up to 11m chain)

misia MH hoist eye suspension dimensions

Misia eye Suspension Hoist Dimensions

Hook Suspension Hoist Dimensions

SWL	Model	Minimum Headroom C	Dimensions (mm)
t	Hook suspension 1G	mm	a	b	c	d	e	f	g	h1*
125	MH1SD/1G	445	148	140	72	404	235	169	25	480
250	MH3LD/1G	445	148	140	72	404	235	169	25	480
250	MH3SD/1G	445	148	140	72	404	235	169	25	480
500	MH5LD/1G	445	148	140	72	404	235	169	25	480
500	MH5SD/1G	445	148	140	72	404	235	169	25	480
1000	MH10LD/1G	480	148	140	72	404	235	169	25	480
1000	MH10SD/1G	500	174	144	116	452	266	186	25	590
2000	MH20LD/1G	585	174	144	116	452	266	186	34	590
* Short type chain container (up to 11m chain)

hook suspension dimensions for the Misia MH electric hoist

MH Hoist with Push Trolley Dimensions

SWL	Model	Minimum Headroom C	Dimensions (mm)
t	2S Push Travel Trolley	mm	b	d	e	f	g	h1*	I	m	n	n1	k
125	MH1SD/2S	425	92	404	235	169	25	460	100	55	200	240	67
250	MH3LD/2S	425	92	404	235	169	25	460	100	55	200	240	67
250	MH3SD2S	425	92	404	235	169	25	460	100	55	200	240	67
500	MH5LD/2S	425	92	404	235	169	25	460	100	55	200	240	67
500	MH5SD/2S	425	92	404	235	169	25	460	100	55	200	240	67
1000	MH10LD/2S	500	92	404	235	169	25	498	120	78	246	286	87
1000	MH10SD/2S	462	117	452	236.5	186.5	25	555	120	78	246	286	87
2000	MH20LD/2S	555	117	452	236.5	186.5	34	560	132	80	276	316	94

Misia MH electric hoist with push trolley dimensions

MH Hoist with Electric Powered Trolley Dimensions

SWL	Model	Minimum Headroom C	Dimensions (mm)
t	3 Electric Trolley	mm	c mm	e mm	f mm	g mm	*h1 mm**	I mm	m mm	n mm	n1 mm	k mm	s max mm
125	MH1SD/3	465	24	172	317	25	500	124.5	80	300	376	125	25
250	MH3LD/3	465	24	172	317	25	500	124.5	80	300	376	125	25
250	MH3SD/3	465	24	172	317	25	500	124.5	80	300	376	125	25
500	MH5SD/3	465	24	172	317	25	500	124.5	80	300	376	125	25
500	MH5SD/3	465	24	172	317	25	500	124.5	80	300	376	125	25
1000	MH10LD/3	500	24	172	317	25	500	124.5	80	300	376	125	25
1000	MH20LD/3	580	72	172	317	25	584	124.5	80	300	376	125	25
2000	MH20LD/3	667	72	172	317	25	584	124.5	80	300	376	125	25
