Red Rooster TCS High Speed Air Hoist Models

There are essentially four different variations available for the Red Rooster TCS high speed air hoists collection.

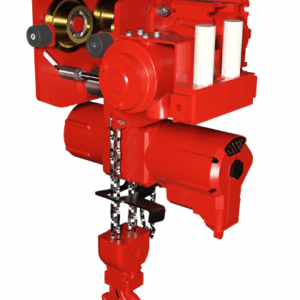

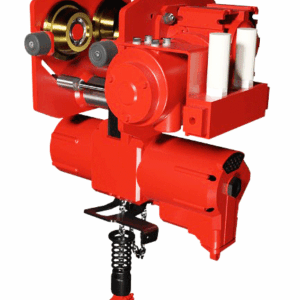

Firstly there are the 2 stand alone hoists which come in two working load limit capacities – 500kg and 980kg. The other 2 models are the same hoists but with an incorporated air powered trolley system.

Each set up is designed to be lightweight and can be used in ATEX zone 2 as standard. Using a 6 bar working pressure these air hoists offer fast, safe and versatile lifting solutions even in harsh conditions.

TCS Air Hoist Speeds

The two TCS models have different speeds for lifting and lowering when loaded or unloaded.

Here is the breakdown;

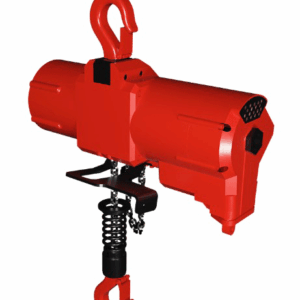

TCS-500 Lift unloaded = 33m/min; loaded = 17m/min; Lowering with load = 34m/min

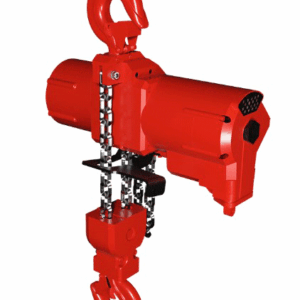

TCS-980 Lift unloaded = 17m/min; loaded = 8.5m/min; Lowering with load = 17m/min

The trolley is capable of travelling speeds to 9 metres per minute but the travel speed should be 6m/min in ATEX zone1.

All hoists and trolleys comply with the UK supply of machinery regulations 2008 and the EU machinery directive. Hoists can be UKCA or CE marked.

Red Rooster TCS Air Hoist Features and Options

There are a number of great features on these hoists as well as a good range of optional extras.

The key standard Hoist Features;

• Aluminium casing/housing to minimise weight
• Rotary vane gearbox (Toku)
• Internal disc brake with auto fail safe
• Top and bottom limit switches
• Epicyclical gearbox
• Safety swivelling hooks.

Optional Extras

• Corrosion protection
• Marine specs
• Chain collectors
• Air servicing units

Trolley Standard Features

• Anti-tilt
• sealed wheel bearings
• to suit various flange types

Trolley Add-ons;

• Marine specialised
• collision bumpers
• travel limits
• Beam brake
• optional speeds
• Radio control

There are some additional options which can be found in the information downloads above along with the full specifications for each model. We have also included a basic manual for additional information.

If you would like the model complete with a trolley then please give us a call for the latest prices.

On our main air hoist page you will find other Red Rooster air hoists as well as ranges from other manufacturers for easy comparison.
