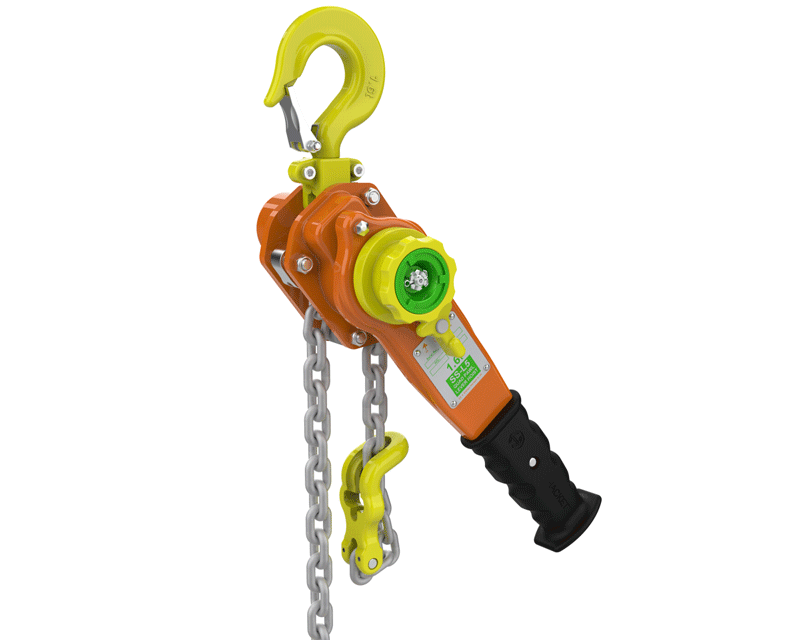

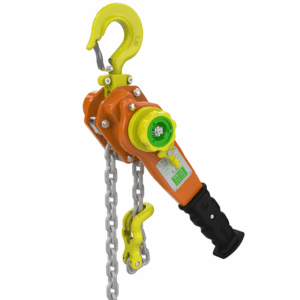

About the SSL5 Subsea Ratchet Hoist

Ideal for subsea and topside use as well as water utilities and other marine industries.

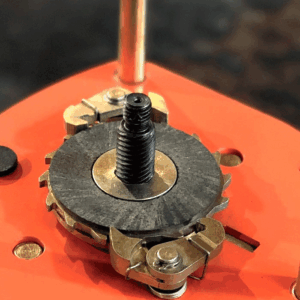

Just like many other William Hackett hoisting systems the subsea SSL5 lever hoist uses a quad pawl system. This innovative system means that all 4 pawls can engage with the gear wheel thanks to the off set design.

The quad pawls provide a much finer tolerance adjustment and optimum safety against failure. The system has been tested for endurance to 2x the industry norm.

When it comes to its lifespan, whilst it may not be as good as other ratchet hoists used in normal conditions, given the water immersion scenario its pretty good.

Flushing the hoist out with fresh water (not pressurised) after each use is essential and will help to prolong its life.

After each immersion period the hoist will require full strip down for thorough inspection and testing by an authorised agent before re-use. Full usage, servicing and inspection logs must be kept.

A triple layer of marine grade paint suitable for category 5 environments has a 7-15 year life span and is applied to the SSL5 subsea ratchet hoist. All fixings are stainless steel and internal components have enhanced corrosion protection.

Other Features of the SSL5 Subsea lever hoist

There are many high quality features on the SSL5 subsea lever hoist which is made and tested in the UK. Here are some key features, the full breakdown can be found in the specification and download tab above.

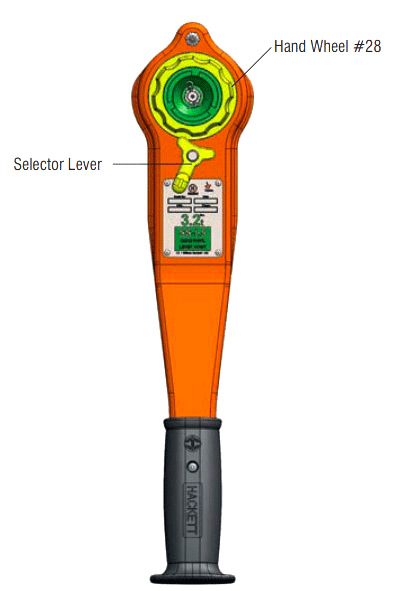

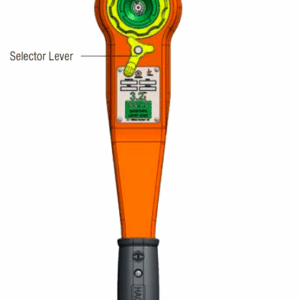

Dual anti-lock brake system, including freewheel mode.

Stainless pawl springs.

High performance, waterproof grease.

Unique design travelling end stops – adjustable to any point on the slack load chain.

Safety hooks with overload indicator markings and traceability codes.

Cross hauling allowed up to 45 degrees from vertical with no de-ration required.

Sintered friction material is used on the brakes and is fused straight onto the gear.

Grooves/channels in the brake material allow water to displace.

Overloading limiter available on request.

Other Subsea Lifting Hoists

Here at Lifting Hoists Direct we have a specific category just for subsea hoists. Here you will find a good choice of manual hoisting systems such as ratchet hoists and chain blocks. ROV operated hoists can also be found here. We use the leading UK brands in this genre including William Hackett and Tiger so you can be assured of great quality.

We have included full specifications and user manuals where possible to help you make sure the product you choose will suit your requirements.
