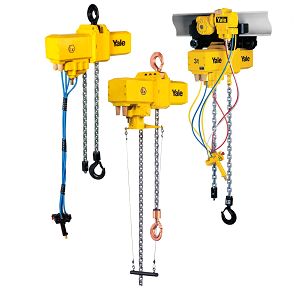

About the Yale CPA HD Air Hoist
We have a range of models for the CPA HD with capacities for load lifting ranging between 2000kg and 10000kg.
4-6 bar pressure is needed to operate the CPA HD pneumatic hoist.
There is a large dimension silencer for low noise emission so quieter in use.

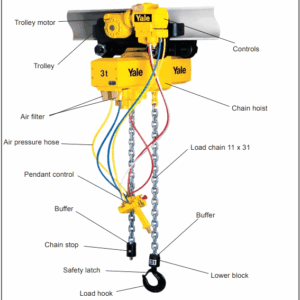

Other features include a high starting torque, 5 pocket load chain sheave, planetary gearbox, high tense forged hooks and a robust rotating piston motor with an adjustable spring pressure brake to always hold the load, even if the air supply fails.
CPA HD Pneumatic Hoist ATEX Ratings

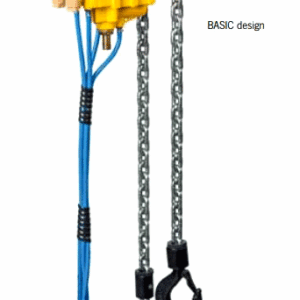

The hoist comes with basic ATEX zone protection as standard but can be upgraded to ATEX medium or even High ratings should you require higher protection.

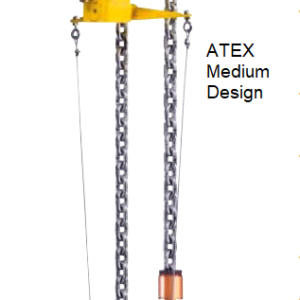

The medium option has copper coated hooks whilst the high option also includes stainless steel load chain. Want to know more about ATEX? find out about ATEX environments and equipment here and ATEX zones here.
Extra Considerations

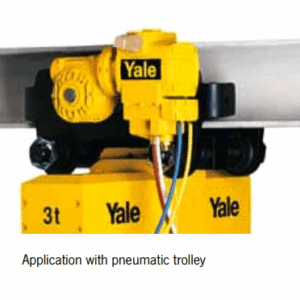

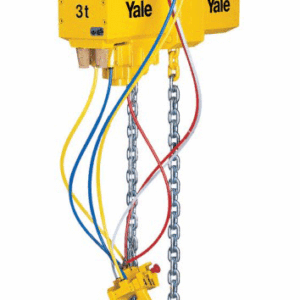

There are a number of optional extras to consider should you decide this hoist could work for you. The integrated trolley option proves to be popular but trolleys are also available for the hook suspension hoist. Basic, medium and high protection available.
Rope control, chain container, limit switch and additional coatings are some other options to think about. A mobile maintenance unit is also available.
Other Pneumatic Air Hoists
Besides this heavy duty model, the CPA also comes in a smaller capacity hoist with SWL up to 980kg.
Air powered hoists are also available from Red Rooster and J.D.Neuhaus, well known and trusted brands in the air powered genre.
You will also find a number of tool handling bench hoists within the air hoist category, perfect for bench work and production lines.
