Yale CPE  & CPEF Hoist

The Yale CPE electric hoist is available in single speed – the CPE, and dual speed – the CPE/F.  The additional benefit of an optional integrated powered trolley is available if required. Also available is a twin hoist model – the CPE 100-2 for extra heavy duty lifting operations.

The CPE range of electric hoists offered by Lifting Hoists Direct are perfect for professional lifting operations. High efficiency, easy  and inexpensive servicing  and designed for a long working life are the main plus points.

Key Features of the Yale CPE Electric Hoist

The CPE range has a large number of specialised features to provide an electric hoist with optimum power, safety and efficiency.

The CPE Electric Hoist Motor

The motor classification varies between the models. The Yale CPE (/F) 20-8, 30-5 & 40-4 models being classified at 1Bm/m3 and all other models at 1Am/M4; it is possible to modify classification rates on request. The highly efficient, robust squirrel caged motor has an adjustable spring pressure brake. This continuously holds the load if the power fails. This hoist has also been fitted with bimetallic thermal protection to minimise overheating. The motors on these hoists have an IP54 rating which protects against contact with live or moving parts within the enclosure. Also against solid foreign particles over 1mm and splashing in all directions. It also has a class F insulation rating, and ideal for operating temperatures from -10 to +50 degrees.

Other Key CPE Electric Chain Hoist Components

The planetary gearbox has an oil bath for lifetime lubrication. It also gives extremely smooth operation. There is a 5 pocket sheave for the load chain which is made from case hardened steel. It it is perfectly matched to the zinc plated load chain which ensures smooth and precise chain movement.

Available with direct control or 42v low voltage control, the pendant controller is fully encapsulated and protected to IP65. This rating gives complete protection against contact, dirt ingress and water jets in all directions. The duty cycle for these electric hoists is 40% at one operating speed. The standard operating voltage is euro-voltage 400v, 3phase, 50Hz.

Both the top suspension hook and the load hook are manufactured from non-ageing, high tensile steel and come fitted with robust safety catches for extra security.

Twin Hoist Model

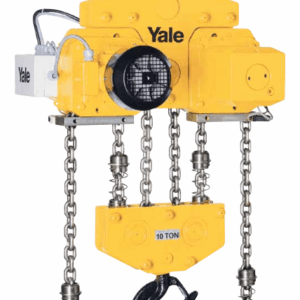

The largest CPE hoist is the CPE/F 100-2 which is a twin hoist version. This special hoist is essentially made up from two CPE 50-2 hoists which are connected by a custom framework. These hoists can have many advantages to heavy duty lifting applications and give a huge lifting capacity of 10000kg. High and low limit switches come as standard on this model only.

Optional Extras Available

The Yale CPE hoist has a number of extra options available to further enhance the hoist and user experience.

·         Stainless steel load chain

·         limit switches

·         Rain jackets

·         Extra chain length. (3metres comes as standard)

·         90 degree rotated suspension hook

·         Chain containers

·         Radio remote control

·         Motor with stainless steel brake

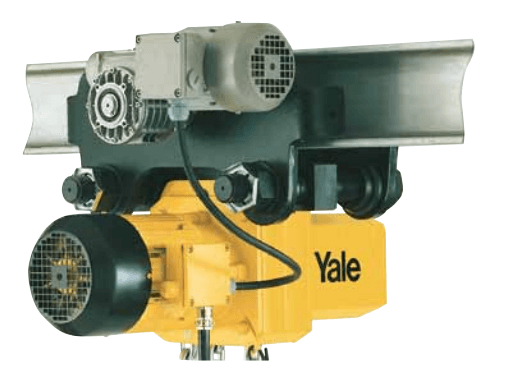

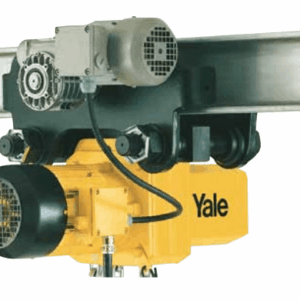

·         Manual and electric trolley systems

·         Festoon cable system

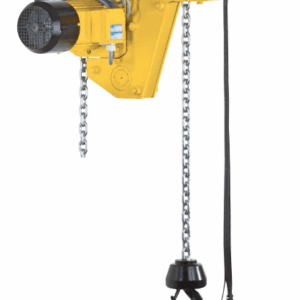

·         Integral low headroom trolley

Check out the other Yale electric chain hoists we have to offer and if you need more information on any electric hoist give our sales team a call on 01384 76961 or use the contact us form here.

Specifications



Model	Capacity in kg/number of chain falls	Chain dimensions d x p (mm)	Classification FEM/ISO	Lifting speed main lift m/min	Lifting speed fine lift m/min	Hoist Motor (kW)	Motor Rating ED%
CPE 16-8	1600/1	11 x 31	1Am/M4	8		2.3	40
CPE/F 16-8	1600/1	11 x 31	1Am/M4	8	2	2.3/0.58	40/20
CPE 20-8	2000/1	11 x 31	1Bm/M3	8		2.8	25
CPE/F 20-8	2000/1	11 x 31	1Bm/M3	8	2	2.8/0.7	25/15
CPE 25-5	2500/1	11 x 31	1Am/M4	5		2.3	40
CPE/F 25-5	2500/1	11 x 31	1Am/M4	5	1.25	2.3/0.58	40/20
CPE 30-5	3000/1	11 x 31	1Bm/M3	5		2.8	25
CPE/F 30-5	3000/1	11 x 31	1Bm/M3	5	1.25	2.8/0.7	25/15
CPE 32-4	3200/2	11 x 31	1Am/M4	4		2.3	40
CPE/F 32-4	3200/2	11 x 31	1Am/M4	4	1	2.3/0.58	40/20
CPE 40-4	4000/2	11 x 31	1Bm/M3	4		2.8	25
CPE/F 40-4	4000/2	11 x 31	1Bm/M3	4	1	2.8/0.7	25/15
CPE 50-2	5000/2	11 x 31	1Am/M4	2.5		2.3	40
CPE/F 50-2	5000/2	11 x 31	1Am/M4	2.5	0.6	2.3/0.58	40/20
CPE 75-1.6	7500/3	11 x 31	1Am/M4	1.6		2.8	40
CPE/F 75-1.6	7500/3	11 x 31	1Am/M4	1.6	0.4	2.8/0.58	40/20
CPE 100-2	10000/4	11 x 31	1Am/M4	2.5		2×2.3	40
CPE/F 100-2	10000/4	11 x 31	1Am/M4	2.5	0.6	2×2.3/0.58	40/20

Dimensions

Model	CPE/CPEF 16-8	CPE/CPEF 20-8	CPE/CPEF 25-5	CPE/CPEF 30-5	CPE/CPEF 32-4	CPE/CPEF 40-4	CPE/CPEF 50-2	CPE/CPEF75-1.6	CPE/CPEF 100-2
A, mm	516	516	516	516	681	681	681	950	1068
A1, mm	286	286	286	286	428	428	428	479	651
A2 (13m), mm	430	430	430	430	430	430	430
A2 (21m), mm	530	530	530	530	530	530	530	530	555
B, mm	35	35	35	35	45	45	45	60	60
C, mm	37	37	37	37	46	46	46	52	52
D, mm	24	24	24	24	30	30	30	40/45	40/45
E, mm	24	24	24	24	24	24	24
F1, mm	160	160	160	160	160	160	160	160	160
F2, mm	178	178	178	178	178	178	178	178	178
G, mm	220	220	220	220	220	220	220	220
G1, mm	180	180	180	180	140	140	140	268	315
G2 (13m), mm	257	257	257	257	218	218	218
G2 (21m), mm	277	277	277	277	238	238	238	345	408
H1, mm	110	110	110	110	110	110	110	110	135
H2, mm	135	135	135	135	135	135	135	307	256
K1, mm	100	100	100	100	100	100	100	92	92
K2, mm	51	51	51	51	51	51	51	62	62
M, mm	50	50	50	50	10	10	10	138
N, mm	84	84	84	84	124	124	124	136	390
Q1, mm	280	280	280	280	280	280	280	280	280
Q2 (CPE), mm	362	362	362	362	362	362	362	362	362
Q2 (CPEF), mm	417	417	417	417	417	417	417	417	417
